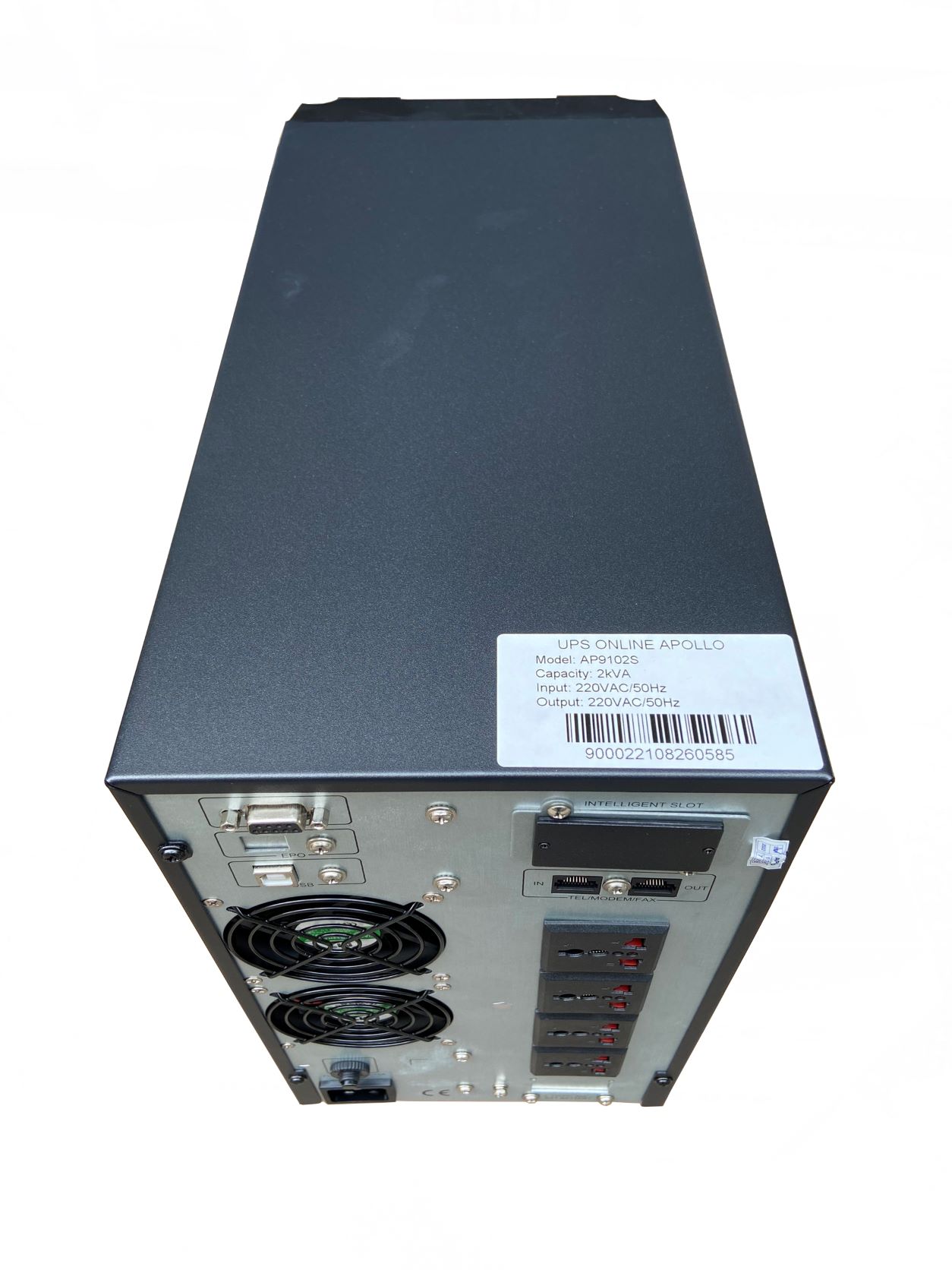

MODEL | AP9101S | AP9101H | AP9102S | AP9102H | AP9103S | AP9103H |
Capacity | 1 KVA / 900 W | 2 KVA / 1800 W | 3 KVA / 2700 W |
INPUT |
Rated voltage | 208 V / 220 V / 230 V / 240 Vac |
Voltage range | 110 ~ 176 Vac (linear derating between 50% and 100% load ); |
176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%) |
Frequency | 40 ~ 70 Hz (auto-sense) |
Power factor | ≥ 0.99 |
Bypass voltage range | -25% ~ +15% (settable) |
OUTPUT |
Voltage | 208 V / 220 V / 230 V / 240 Vac (settable via LCD) |
Voltage regulation | ± 1% |
Frequency | 45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode) |
Waveform | Sinusoidal |
Crest factor | 3:01 |
Harmonic distortion | ≤ 2% (linear load); ≤ 5% (non-linear load) |
Transfer time | Mains mode to battery mode: 0 ms |
Inverter mode to bypass mode: 4 ms (typical) |
Overload capability | 105% ~ 125%: transfer to bypass in 1 min; |
125% ~ 150%: transfer to bypass in 30 s; |
> 150%: transfer to bypass in 300 ms |
EFFICIENCY |
Mains mode | ≥ 90% | ≥ 91% | ≥ 92% |
Battery mode | ≥ 85% | ≥ 86% | ≥ 87% |
ECO mode | ≥ 95% | ≥ 96% | ≥ 97% |
BATTERIES |
DC voltage | 36 V | 36 V | 72 V | 72 V | 96 V | 96 V |
Inbuilt battery of standard model | 3×7 Ah | / | 6×7 Ah | / | 8×7 Ah | / |
Charging current (max.) | 1 A | 6 A | 1 A | 6 A | 1 A | 6 A |
Recharge time | 8 h |
ALARMS |
Utility failure | 4 s per beep |
Low battery | 1 s per beep |
Overload | 1 s twice beep |
UPS fault | Long beep |
COMMUNICATIONS |
RS232 (standard) / USB (optional) | Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10 |
SNMP (optional) | Power management from SNMP manager and web browser |
OTHERS |
Operating temperature | 0 ~ 40℃ |
Relative Humidity | 0 ~ 90% (non-condensing) |
Noise level | ≤ 50 dB (1m) |
Dimensions (W×D×H) (mm) | 144 × 414 × 214 | 191 × 418 × 335 |
Packaged dimensions (W×D×H) | 230 × 492 × 318 | 277 × 500 × 435 |
Net weight (kg) | 13 | 6 | 25.7 | 10.5 | 32 | 11 |
Gross weight (kg) | 14.2 | 7 | 27.4 | 12 | 34 | 12.5 |
