·The digital tube displays output voltage, current, real-time monitoring of power working conditions.
·Standard 19 inch rack, voltage levels has 48V,-48V, 24V.
·Big power density, high efficiency.
·Stable DC output, voltage regulation ≦0.1%
·With the battery management function, also can provide supply to the load.
·Full protection function, the input and output, under voltage, overvoltage protection.
| Model | SET48-1000(B) | SET48-1500(B) | SET24-1000(B) | SET24-1200(B) |
| Input voltage(AC) | 85V-290V | 85V-290V | ||
| Output voltage(DC) | 48V(42V-59V) | 24V(21V-29V) | ||
| Output current(A) | 20A | 30A | 40A | 50A |
| Output power | 1000W | 1500W | 1000W | 1200W |
| Operation temperature | -25℃ ~ 65℃ | |||
| Relative temperature | ≤97%RH | |||
| Load regulation | ≤0.5% | |||
| Voltage regulation | ≤0.1% | |||
| Alarm and protection | Over current, under voltage , high temperature | |||
| Dimension | 88*432*320(mm) H*W*D | |||
| Remark | '' B'' for models with battery management , and dry contact | |||

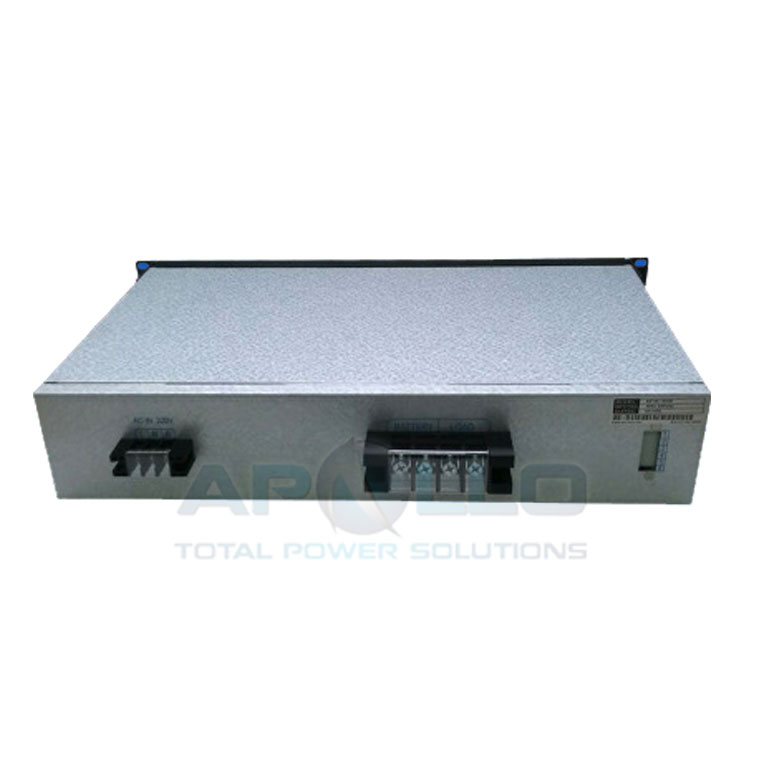

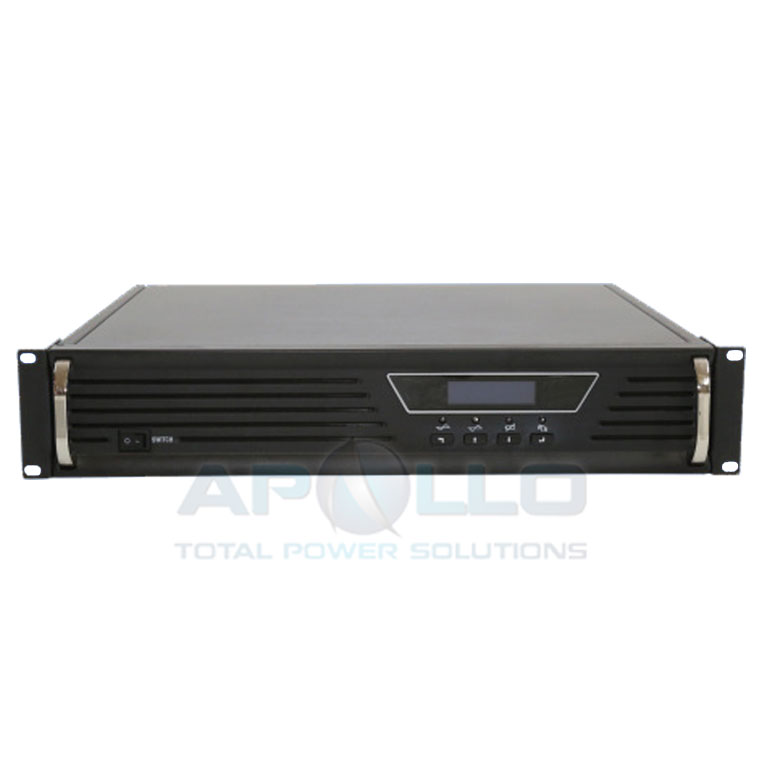

Single unit rectifier power supply SET-CPS3000 series, mainly used for battery charge and discharge ,or power supply for the communication load, small base stations, power distribution cabinets,satellite communications, exchange office etc.
