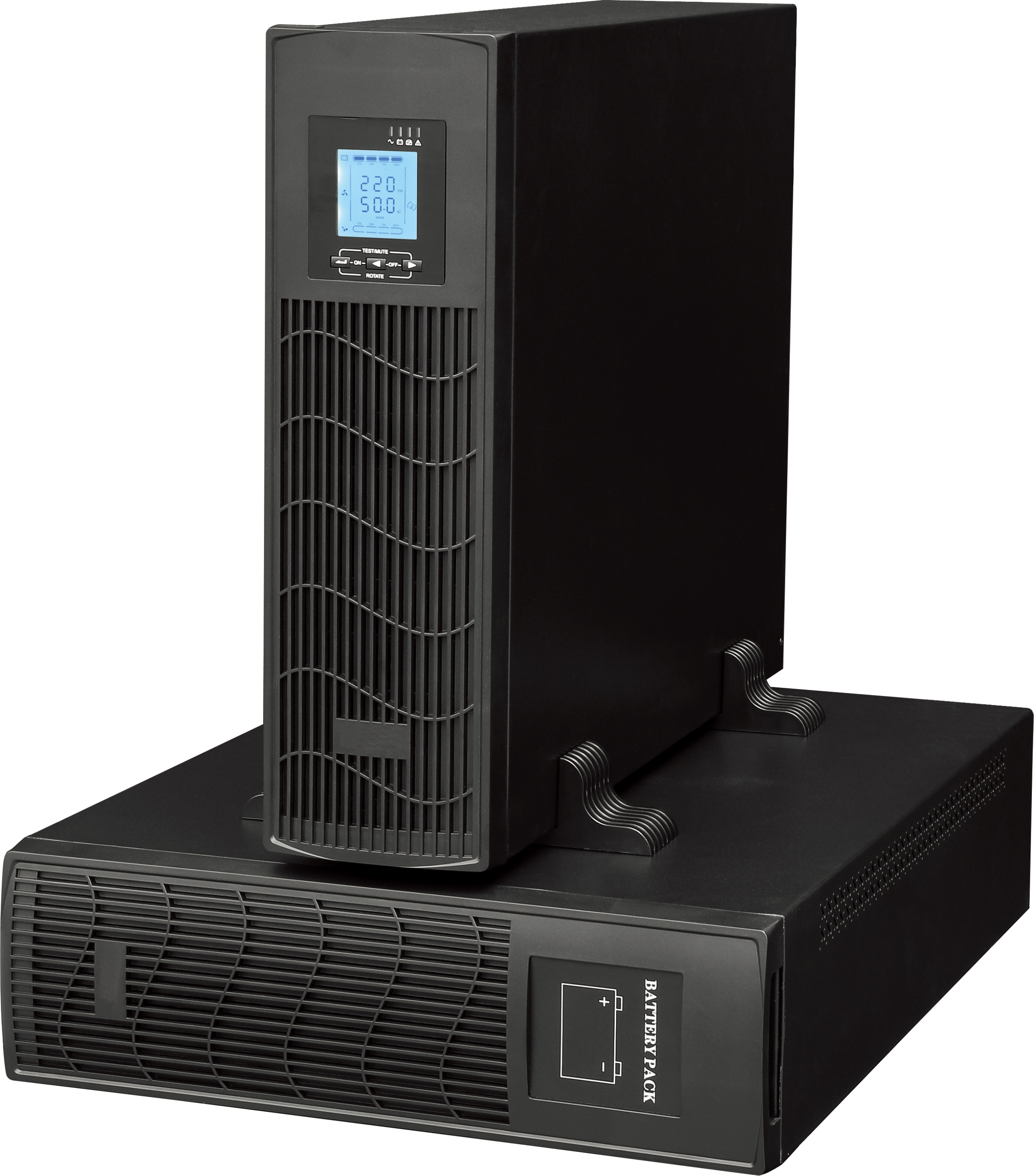

Bộ lưu điện UPS Online Rack Mount Apollo 6000VA, AP906RT

Bộ lưu điện UPS Online Apollo 6kVA, AP906RT, Rack Mount

Mã sản phẩm: AP906RT

Trạng thái: Còn hàng

0 ₫

AP900RT 6KVA~10KVA online UPS is the high density version of on-line double-conversion UPS with input power factor correction (PFC), output power factor 0.9 offering high levels of reliability and protection for IT systems, telecommunications equipment and mission critical systems. The UPS is rack and tower convertible, and takes up only 2-3U in height. For critical business continuity applications requiring long runtimes, EA900IIRT UPS （long time model）can be installed with battery extension packs.

Số lượng:

- +

Đặc điểm nổi bật

● Rack / Tower design
● High frequency and true double-conversion
● DSP digital control technology
● Input power factor correction (PFC)
● Wide input voltage range (110 V ~ 300 V)
● Output power factor 0.9
● Cold start
● Auto sensing frequency
● ECO mode operation for energy saving
● Selectable output voltage via LCD
● 50 Hz / 60 Hz frequency conversion mode
● Selectable battery low voltage via LCD
● Power-on self test
● Advanced battery management (ABM)
● Short circuit and overload protection
● Automatic charging in OFF mode
● Fan speed auto control when temperature varies
● Standard RS232 communication port and RJ45 protection
● Optional USB / SNMP communication port
● Optional emergency power off (EPO)
● Optional extension battery bank
● Optional N+X redundancy parallel

Thông số kĩ thuật

MODEL		AP906RT	AP9010RT
Capacity		6 KVA / 5400 W	10 KVA / 9000 W
INPUT
Rated voltage		208 V / 220 V / 230 V / 240 Vac
Voltage range		Half load (115 ~ 295) ± 5 Vac, full load (160 ~ 295) ± 5 Vac
Frequency		40 ~ 70 Hz ± 0.5 (auto-sense)
Power factor		≥ 0.99
Bypass voltage range		160 V ~ rated output voltage + 32 V
OUTPUT
Voltage		208 V / 220 V / 230 V / 240 Vac (settable via LCD)
Voltage regulation		± 1%
Frequency		Synchronized with utility in mains mode; 50 / 60 Hz ± 0.2 Hz in battery mode
Waveform		Sinusoidal
Crest factor		3:1
Harmonic distortion		≤ 2% (linear load); ≤ 5% (non-linear load)
Transfer time		Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 0 ms
Overload		105% ~ 125% for 3 mins, 125% ~ 150% for 30 s, >150% for 0.5 s
EFFICIENCY
Mains mode		≥ 92%
Battery mode		≥ 91%
ECO mode		≥ 98%
BATTERIES
DC voltage		192 V
Inbuilt battery of standard model		16×7 Ah	16×9 Ah
Charging current	Standard model	1 A
	Long time model	1 A / 3 A / 5 A / 8 A
Recharge time		8 h
ALARMS
Utility failure		4 s per beep
Low battery		1 s per beep
Overload		1 s twice beep
UPS fault		Long beep
COMMUNICATIONS
RS232 (standard), USB (optional)		Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10
SNMP (optional)		Power management from SNMP manager and web browser
OTHERS
Humidity		20 ~ 90% RH @ 0 ~ 40℃ (non-condensing)
Noise level		≤ 55dB (1m)
Long time model	Dimensions (W×D×H) (mm)	440×580×132 (UPS)
	Packaged dimensions (W×D×H) (mm)	530×703×227 (UPS)
	Net / Gross weight (kg)	16.4 / 20.7	17.1 / 21.4
Standard model	Dimensions (W×D×H) (mm)	440×580×132 (UPS), 440×580×132 (BAT)
	Packaged dimensions (W×D×H) (mm)	530×703×227(UPS), 530×703×227 (BAT)
	Net / Gross weight (kg)	16.4 / 20.7 (UPS) 43.6 / 47.1 (BAT)	17.1 / 21.4 (UPS) 49.6 / 53.1 (BAT)
