| MODEL | AP610 | AP615 | AP620 | AP630 |
| Capacity | 1000VA/800W | 1500VA/1200W | 2000VA/1600W | 3000VA/2400W |
| INPUT | |
| AC voltage | 100V/110V/120Vac ±26% or 220V/230V240Vac ±26% (-35% optional) |
| Frequency | 50Hz/60Hz ±10% (auto-sense) |
| OUTPUT | |
| Voltage during battery operation | 100V/110V/120Vac ±5% or 220V/230V/240Vac ±5% |
| Voltage during mains operation | 100V/110V/120Vac ±9% or 220V/230V240Vac ±9% |
| Frequency | 50/60Hz±0.3Hz (auto-sense & settable) |
| Waveform | Pure sine wave |
| Harmonic distortion | ≤5% (linear load) |
| Transfer time | ≤ 8ms |
| ECO mode | Settable (<3% load) to enter in 80s |
| No-load shutdown | Settable (<3% load) shutdown in 80s |
| EFFICIENCY | |
| Mains mode | Max. 98% |
| Battery mode | Max. 85% (linear load) |
| BATTERIES | |
| Standard model | DC voltage | 24V | 24V | 36V | 48V |
| Number & type | 2 x 12V7Ah | 2 x 12V9Ah | 3 x 12V9Ah | 4 x 12V9Ah |
| Charge current | Standard model: 1A (default), 0-5A (adjustable by back-end setting) |
| Recharge time | 8 h |
| End of discharge voltage | Single battery 10.2Vdc (default), 9.6-11.5Vdc (adjustable) |
| ALARM | |
| Battery mode | Beep every 5s, be silent in 60s |
| Low battery | Keep beeping for 0.16s at interval of 0.16s (quick beep) |
| Overload | Keep beeping for 2s at interval of 0.5s (long beep) |
| COMMUNICATIONS | |
| USB+RJ45 | Supports Windows 98/2000/2003/XP/Vista/2008/7/8/10 |
| SNMP (option) | Power management from SNMP manager and web browser (standard with slot) |
| OTHERS | |
| Protections | Overload- short circuit- battery overcharge- overdischarge |
| Humidity | 10~90% RH @ 0~40℃ (non-condensing) |
| Noise level | ≤5dB (1m) |
| OTHERS | |

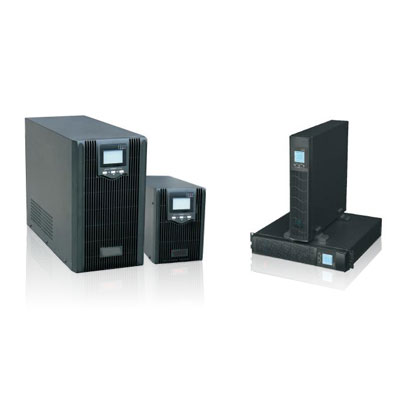

| Tower | Dimension(mm) WxDxH | 144 x 346.5 x 215 | 144 x 411.5 x 215 | 190 x 467 x 335.5 |
| Packing Dimension(mm) WxDxH | 236 x 427 x 316 | 236 x 492 x 316 | 320 x 592 x 462 |
| Net weight(kg) | 12.2 | 14.2 | 18.5 | 28.1 |
| Gross weight(kg) | 13.2 | 15.2 | 19.8 | 30.2 |
| Rack mount | Dimension(mm) WxDxH | 440 x 338 x 88 | 440 x 410 x 132 |
| Packing Dimension(mm) | 616 x 448 x 208 | 505 x 611 x 235 |
| Net weight(kg) | 14.6 | 17.2 | 21.3 | 26.7 |
| Gross weight(kg) | 16.8 | 20.4 | 24.5 | 30.5 |
